x-travel 10000 mm
y-travel 1500 mm
z-travel 3000 mm
Control Heidenhain TNC 415B
spindle taper ISO 50
distance table -spindle nose mm
speed steps 2
speeds infinitely variable 35 - 3000 U/min.
feeds 6 - 10000 mm/min
rapid traverse longitudinal 10000 mm/min
rapid traverse cross 15000 mm/min
rapid travel vertical 10000 m/min
main drive 37 / 100% ED kW
Number of working hours 41500 h
weight of the machine ca. 39,3 t
dimensions of the machine ca. 17,8 x 6,5 m
height of the machine 6,2 m
Machine under floor level 1905 mm

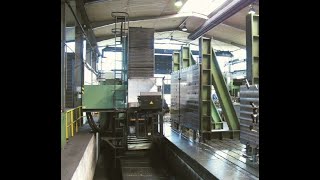

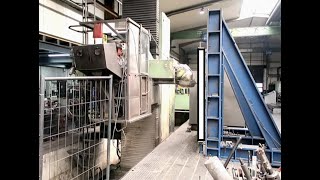

Very well preserved traveling column milling and boring machine in lateral
construction. Machine is sold because of reorganization and has been used 10
years but later only sporadically.
Special Equipment:
- Bigger traverse transversely and vertically - universal milling head with
automatic. positioning in both planes with 360,000 positions - Milling spindle
extension in heavy construction = 485 mm - Pick-up system for milling head -
auto. tool changer with 30 paces - chip conveyor - ROTARY TABLE 2000 x 2000 mm,
1500 mm longitudinal, capacity 20 t, rotary and longitudinal controled by CNC
!! - 2 mounting plates, left 4.2 x 2.5 m + 2.2
m for pickup, right 2,0 x 3,2 m. - coolant device with magnetic and paper
band filter, tank 1000 l, Pump 2.5 bar - 60 l / min - oil cooling on hydraulic
system.
Control with 19 "CNC full keyboard with keyboard interface, electronic
handwheel.
The machine requires a suitable foundation. The buyer has to add the
dismantling costs, a heavy hall crane is available to take the machine an to
load on truck.
