YHZM Series planta de hormigón compacta nueva
≈ EUR 10.360
Zhengzhou
Si decide comprar maquinaria a un precio inferior, póngase en contacto con el verdadero vendedor. Recopile toda la información que le sea posible sobre el propietario de la maquinaria. Una forma de engaño es presentarse como empresa. En caso de sospecha, infórmenos mediante el formulario de comentarios y sugerencias para que lo comprobemos.
Antes de confirmar una compra, revise detenidamente varias ofertas de venta para ver cuál es el precio medio del equipo elegido. Si el precio de la oferta que le interesa es mucho menor que el de ofertas similares, piénselo dos veces. Una diferencia de precio significativa puede conllevar a defectos ocultos o a un intento de fraude por parte del vendedor.
No compre productos cuyo precio diste mucho del precio medio de equipos similares.
No acepte compromisos dudosos o mercancías con prepago. Si no lo tiene claro, no dude en solicitar aclaraciones, pida fotos adicionales y documentos del equipo, compruebe la autenticidad de los mismos y pregunte todo lo necesario.
Esta es la forma más habitual de fraude. Ciertos vendedores pueden requerir una cantidad del pago por adelantado en concepto de «reserva» de su compra. Así, los estafadores perciben grandes cantidades de dinero y después desaparecen sin dejar huella.
- Transferencia de prepago a la tarjeta
- No realice un pago por adelantado sin documentación que confirme el proceso de transferencia de dinero, si durante la comunicación con el vendedor ha surgido alguna duda.
- Transferencia a una cuenta «fiduciaria»
- Dicha solicitud debe alarmarle, ya que en la mayoría de los casos se trata de fraudes.
- Transferencia a una cuenta de una empresa con un nombre similar
- Tenga cuidado, ya que los estafadores pueden ocultarse tras la identidad de empresas reconocidas, realizando modificaciones mínimas en su nombre. No transfiera dinero si tiene dudas sobre el nombre de la empresa.
- Sustitución de sus propios datos en la factura de una empresa real
- Antes de realizar una transferencia, asegúrese de que los datos especificados sean correctos y que aludan a la empresa en cuestión.
Contactos del vendedor
+86 150 389...
+86 150 3895 2113
China, Zhengzhou
China, Zhengzhou
The listed price is a starting price for the smaller YHZM20 model with basic configuration. YHZM60 is one of the popular models, and its reference parameters are listed below.

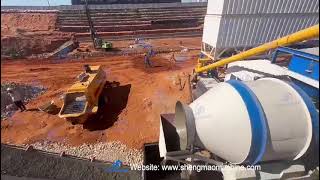

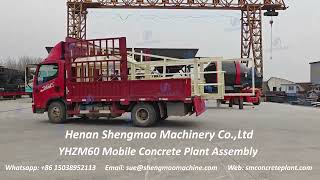

This series adopts a mobile chassis design and drum type concrete mixer. The concrete mixer, aggregate batching machine, belt conveyor, weighing system and control system are integrated on the chassis, making the whole plant compact, easy to transport and convenient for job-site relocation.
Compared with twin shaft mixer type batching plants, the drum mixer design is a more economical solution. It helps reduce the investment cost and is suitable for customers who need practical concrete production with a limited budget. For higher mixing intensity and commercial concrete applications, twin shaft mixer type plants can also be recommended according to project requirements.
YHZM60 and smaller models can be loaded into one 40HQ container, which is convenient for overseas shipping and helps reduce transport cost. The plant does not require a heavy concrete foundation in many project conditions. It can be placed on a flat and solid ground, making installation faster and site preparation easier.
-----------------------------------------------------------------------
Main Advantages
- Compact mobile design, suitable for limited site space
- Drum type concrete mixer, more economical than twin shaft mixer type plants
- Mixer, batching machine, belt conveyor and weighing system integrated on one chassis
- Foundation-free design in many project conditions; can be placed on flat and solid ground
- YHZM60 and smaller models can be loaded into one 40HQ container
- Models available: YHZM20, YHZM30, YHZM60 and YHZM100
- Suitable for small and medium construction projects
- Easy transport, quick installation and convenient relocation
- Panel control system with Bosure control unit
- Schneider electrical components for YHZM60 reference configuration
- Suitable for road works, building construction, rural projects and temporary concrete supply
-----------------------------------------------------------------------
Applications
This compact drum type mobile concrete plant is suitable for:
- Small and medium building construction
- Rural road and village construction
- Temporary concrete production sites
- Contractors working on different project sites
- Small ready-mix concrete supply
- Road and bridge auxiliary concrete works
- Projects with limited site space and limited budget
-----------------------------------------------------------------------
YHZM60 Popular Model Reference Parameters
Model YHZM60 Mobile Concrete Batching Plant
Capacity 60 m3/h
Concrete Mixer JZM1500 drum mixer
Aggregate Batching Machine PLD1600 with 3 bins
Control System Panel control, Bosure
Electrical Components Schneider
Cycle Time 1 min
Aggregate Weighing Accuracy ±2%
Cement Weighing Accuracy ±1%
Water Weighing Accuracy ±1%
Additive Weighing Accuracy ±1%
Total Power 45 kW
Total Weight 16 T
Chassis Size 9.3*1.5 m
Outriggers 8 legs
Tire 8*￠765 mm
-----------------------------------------------------------------------
YHZM60 Main Configuration
1. Aggregate Batching Machine
- Model: PLD1600 with 3 bins
- Storage bin volume: 3*8.5 m3
- Weighing bin volume: 2,400 L
- Motor power: 3*4 kW
- Vibration motor power: 0.55 kW
- Tension sensor: 3*2,000 kg
- Belt conveyor 1: 600*10,530 mm
- Belt conveyor 2: 600*4,230 mm
- Belt conveyor 3: 600*8,720 mm
- Loading height: 3,340 mm
2. Concrete Mixer
- Model: JZM1500 drum mixer
- Production capacity: 60 m3/h
- Feeding capacity: 2,400 L
- Discharge capacity: 1,500 L
- Mixing motor power: 2*11 kW
- Discharging height: 1,310 mm
3. Weighing System
Cement weighing:
Cement weighing bin volume: 1.1 m3
- Pneumatic butterfly valve: ￠300
- Tension sensor: 3*500 kg
- Cement weighing accuracy: ±2%
Water weighing:
Water weighing bin volume: 0.4 m3
- Submersible pump: 3 kW
- Pipeline pump: 3 kW
- Water pipe: 80 mm*15 m
- Pneumatic butterfly valve: ￠80
- Tension sensor: 3*300 kg
- Water weighing accuracy: ±1%
Additive weighing:
- Additive weighing bin volume: 0.03 m3
- Additive pump: 1.5 kW
- Additive pipe: 50 mm*13 m
- Pneumatic butterfly valve: ￠50
- Tension sensor: 1*50 kg
- Additive weighing accuracy: ±1%
4. Pneumatic System
- Air compressor: 0.9 Mpa
- Air rope: 10 mm*30 m
- Gas connection: 10 mm
- Air storage tank: 0.3 cbm
- Air cylinder: AKS
5. Control System
- Operation desk: for YHZM60
- Electric cabinet: included
- Panel control with 4 weighings: Bosure
- UPS: 1 set
- Printer: 1 set
- Weighing transmitter: 1 set
- Contactor: Schneider
- Auto switch: Schneider
- Mini-relay: Schneider
- Thermo-relay: Schneider
- Electrical control accessories: Schneider
-----------------------------------------------------------------------
Why Choose YHZM Series?
YHZM Series is a practical choice for customers who need a compact and economical mobile concrete batching plant. Compared with large stationary concrete plants, it requires less site space and is easier to move between project sites. It is suitable for contractors who need flexible concrete production with a lower investment budget.
For customers who need higher mixing performance, we can also recommend twin shaft mixer type mobile concrete batching plants. For customers who need economical and simple operation, YHZM drum type mobile concrete plant is a good option.
Please tell us your required capacity, project location, aggregate bin requirement and budget. We can recommend the suitable model and provide quotation, shipping plan and site layout solution.
